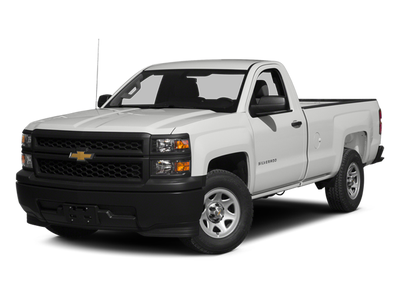

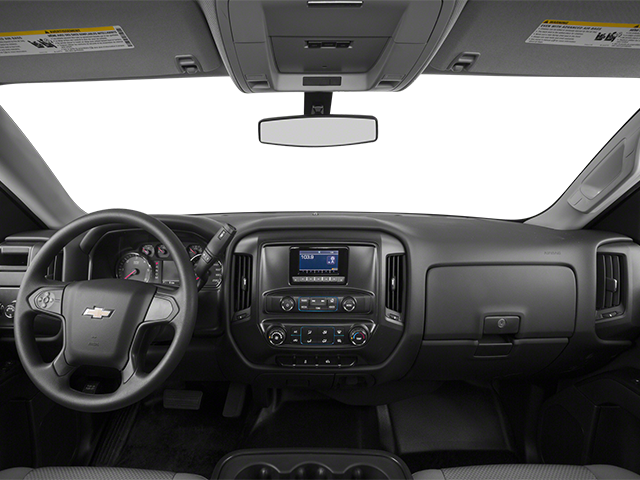

2014 Chevrolet Silverado 1500 Work Truck

• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel
• Tires, P255/70R17 all-season, blackwall
• Tire, spare P255/70R17 all-season, blackwall (Included and only available with (RBZ) P255/70R17 all-season, blackwall tires.)
• Tire carrier lock, keyed cylinder lock that utilizes same key as ignition and door
• Bumpers, front, Black
• Bumpers, rear, Black
• Lamps, cargo area, cab mounted with switch on center switch bank
• Tailgate and bed rail protection cap, top
• Tailgate, locking utilizes same key as ignition and door
• CornerStep, rear bumper
• Headlamps, halogen reflector
• Mirrors, outside manual, Black
• Glass, solar absorbing, tinted
• Door handles, Black

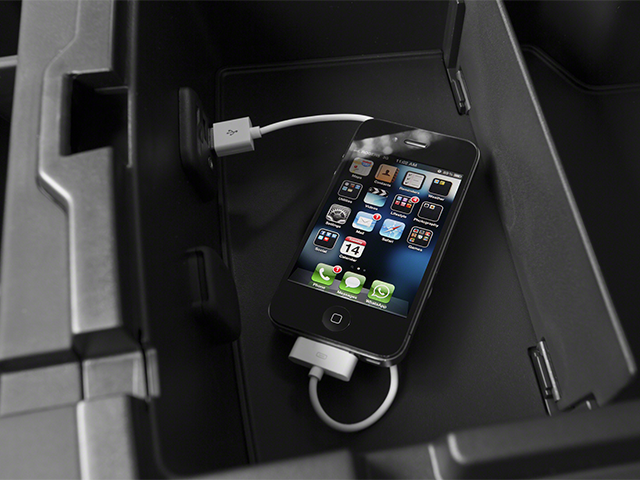

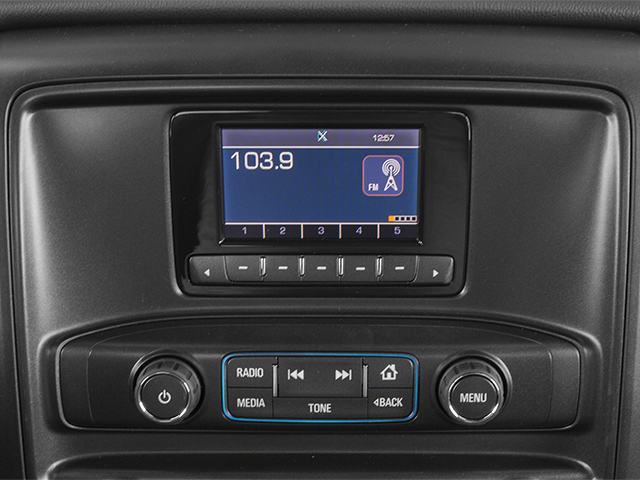

• Audio system, 4.2" Diagonal Color Display, AM/FM stereo with USB ports auxiliary jack and SD card slot
• SiriusXM Satellite Radio, delete
• Audio system feature, 4-speaker system

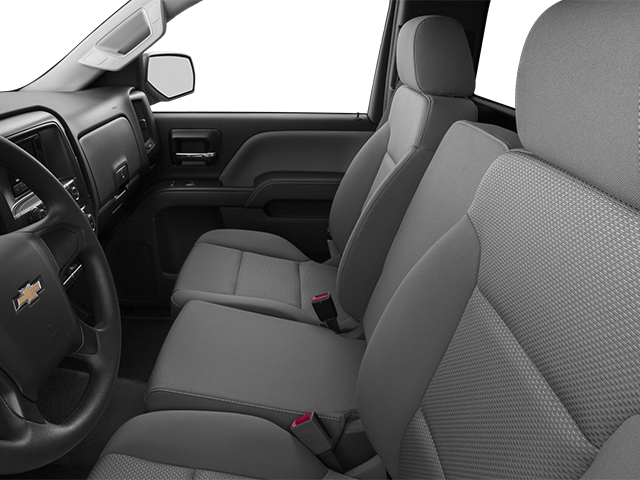

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manual adjustable driver lumbar.
• Floor covering, Graphite-colored rubberized-vinyl, no floor mats included

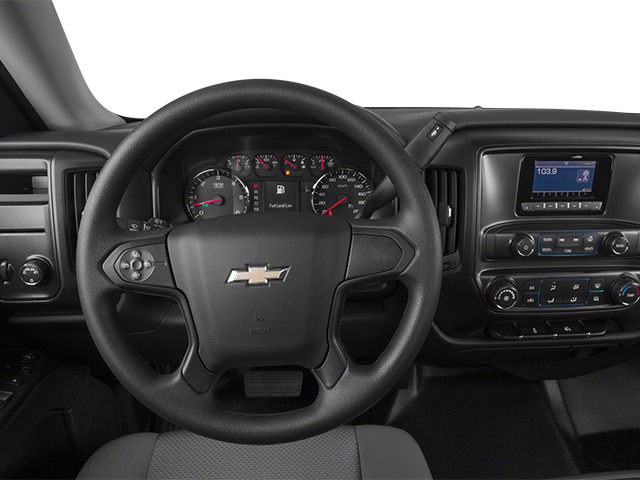

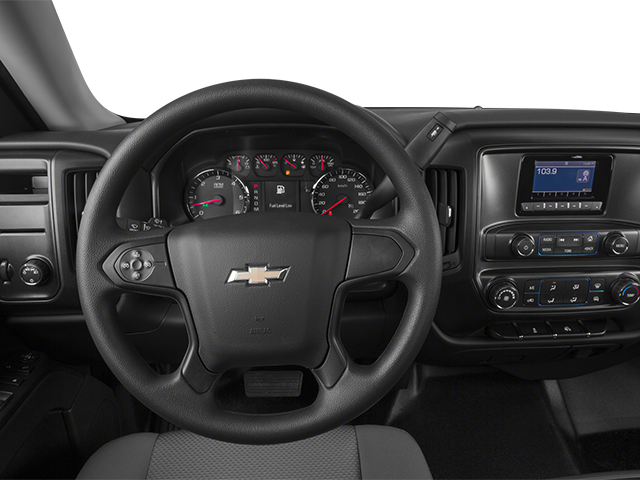

• Steering column, Tilt-Wheel, manual with theft-deterrent locking feature
• Driver Information Center, 3.5-inch diagonal monochromatic display provides warning messages and basic vehicle information
• Door locks, power
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Air conditioning, single-zone
• Assist handle, front passenger on A-pillar

• Daytime Running Lamps with automatic exterior lamp control
• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar, delete
• Tire Pressure Monitoring System (does not apply to spare tire)

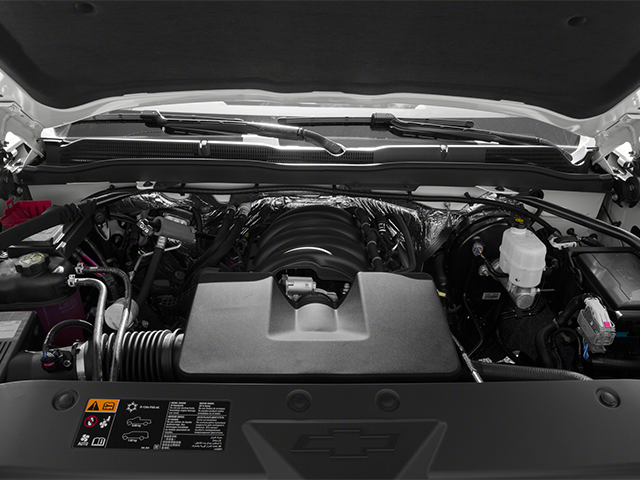

ENGINE, 5.3L FLEXFUEL ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction with Flex Fuel capability
• capable of running on unleaded or up to 85% ethanol (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

• Trailering Equipment
• 4 Speakers
• Radio data system
• Radio: AM/FM Audio System w/Chevrolet MyLink
• SiriusXM Satellite & HD Radio
• Air Conditioning
• Bluetooth® For Phone
• Power steering

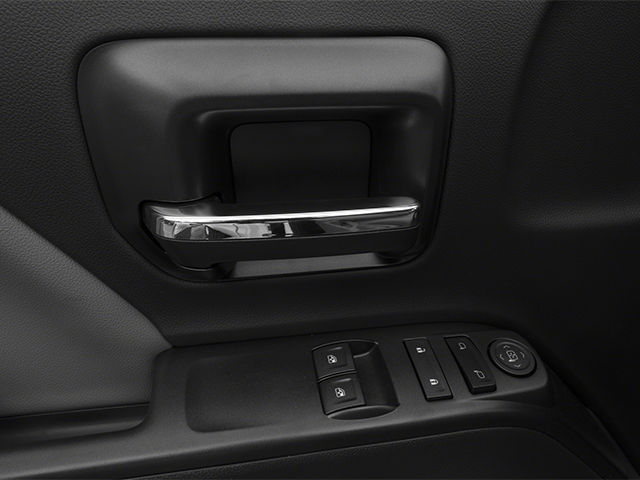

• Power Windows w/Driver Express Up
• Remote Keyless Entry
• Heavy Duty Suspension
• Manual Tilt Wheel Steering Column
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Front anti-roll bar
• Front wheel independent suspension
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Rear Chrome Bumper
• Brake assist
• Electronic Stability Control
• Delay-off headlights
• Fully automatic headlights
• Speed control
• Heavy-Duty Rear Locking Differential
• 150 Amp Alternator
• Auxiliary External Transmission Oil Cooler
• Black Power Adjustable Heated Outside Mirrors
• Front Chrome Bumper
• Front License Plate Kit
• Rear step bumper
• 3.5" Diagonal Monochromatic Display
• Cloth Seat Trim
• Driver door bin
• Front reading lights
• Graphite-Colored Rubberized-Vinyl Floor Covering
• OnStar 6 Months Directions & Connections Plan
• Overhead console
• Passenger vanity mirror
• Tachometer
• Tilt steering wheel
• Trip computer
• Voltmeter
• 40/20/40 Front Split Bench Seat

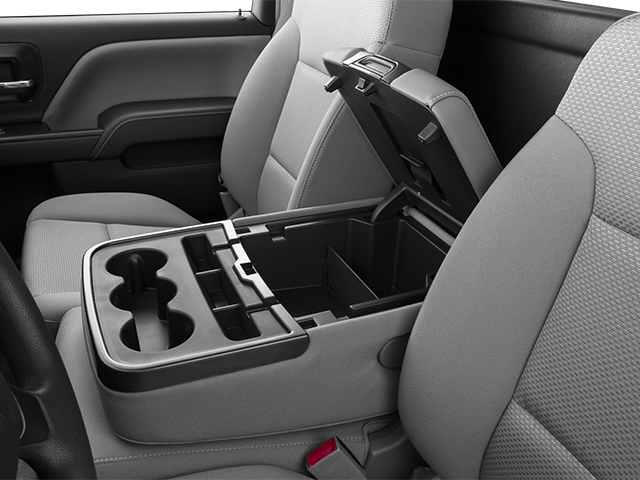

• Front Center Armrest w/Storage
• Passenger door bin
• Deep-Tinted Glass
• Variably intermittent wipers

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 23
• EPA Fuel Economy Est - Hwy (MPG): 24
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3200
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6500
• Gross Combined Wt Rating (lbs): 11000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Maximum Trailering Capacity (lbs): 9300
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3200
• Spring Capacity - Rear (lbs): 3800
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3200
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.23
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RBZ
• Rear Tire Order Code: RBZ
• Spare Tire Order Code: ZBZ
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): 3200
• Rear Tire Capacity (lbs): 3800
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 18.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 40.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 119.0
• Length, Overall w/o rear bumper (in): 205.57
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.97
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 116.90
• Cab to Axle (in): 41.40
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.23
• Ground Clearance, Rear (in): 8.23
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.23
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 42.40
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Summary
• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Reg Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.5
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.0
